Precautions to take before connecting Inverter to Battery

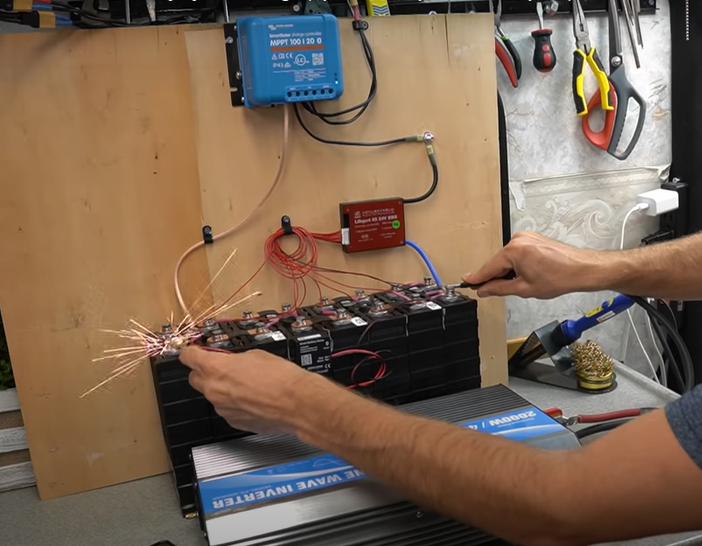

When you are connecting any Inverter to the Battery (thru the fuse), you would have noticed sparking as shown below.

You can also check out the same in the below video.

This sparking happens because the capacitors in the Inverter try to get charged but there is too much power flowing from the Battery.

However, many people are unaware that this sparking can have disastrous consequences for both the inverter’s capacitors and the Li battery’s Battery Management System (BMS). Furthermore, the spark itself is a safety issue because it has the ability to induce hot metal expulsion, which can result in permanent eye damage. The pre-charge resistor is an important component to avoid this. They are often used to protect batteries against high currents during the charging process. In this blog, we will explore the importance of pre-charge resistors and how they play an important part in battery safety.

The Solution

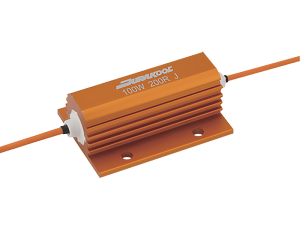

Pre-charge resistors

To reduce the possibility of sparking, the capacitors must be pre-charged before being connected to the battery as shown in the below video.

Pre-charge resistors come into play in this situation. Pre-charge resistors are electrical components that limit the inrush current when connecting a battery to an inverter. This initial surge of electricity can cause damage on the battery and other connected components, or even system failure. Pre-charge resistors gradually limit the current, resulting in a smoother procedure. Please check out the below video¬†too where he is showing the Inverter’s capacitors getting pre-charged using a resistor and the capacitor’s voltage increasing till it becomes the same as that of the Battery.

Choosing the right pre-charge resistors is critical for optimal performance. A 50-ohm resistor protects them from damaging power surges. In order to maintain the safety and integrity of both the inverter and the Li battery, the resistor serves as a current-limiting mechanism, enabling the capacitors to charge at a regulated pace.

The significance of safety measures and education:

When it comes to the proper installation and operation of battery-based systems, education and safety measures play a significant role. That’s why it is crucial to educate the installation team about the necessity of pre-charge resistors. By understanding the potential risks associated with the absence of these resistors, the installation team assures safety.

By implementing this safety measure, the chance of damaging crucial components such as the inverter’s capacitors and the Li battery’s Battery Management System (BMS) is significantly reduced. This not only safeguards the warranty but also preserves the overall performance of the battery-based system, ensuring its long-term reliability.

When you choose to work with EcoSoch, you can rest assured that your battery-based system will be installed safely and properly. We prioritize education, safety, and expertise, ensuring that our installation teams are well-equipped to handle the complexities of battery installations. Trust us to provide the seamless integration of pre-charge resistors, giving you peace of mind and confidence in the performance and longevity of your battery system.

Conclusion:

When it comes to battery-based systems, the installation requires safety considerations. Pre-charge resistors are essential when connecting batteries to inverters because they provide secure and dependable battery operation. These resistors serve a critical role in avoiding damage to inverter’s capacitors and Li battery, and improving overall safety. Pre-charge resistor selection is crucial for achieving optimum performance and protecting the entire battery operating process. By understanding the vital role of pre-charge resistors and sticking to the proper safety measures, we can ensure the longevity and optimal performance of battery-based systems.
